Features:
- Extrusion lines suitable for processing PP or HDPE materials
- Output range starting from 40 Kgs/Hr to upto 200 Kgs/hr
- Smooth Feed type Nitrided Barrels
- Nitrided Screw-Barrel made of special alloy steel for longer life
- Helical gear box with inbuilt thrust bearing
- Lever type filter changer
- Specially designed cross head type multi hole die ensuring uniform flow distribution
- Heavy duty godet unit construction
- Hot water bath for filament orientation
- High density ceramic type band heaters
- SSR based all heating zones
- Single point synchronization of whole line with AC motors and AC invertor drives.
Applications:
- Rope
- Niwar
- Fishing Net
- Mosquito Net
- Fabric Thread

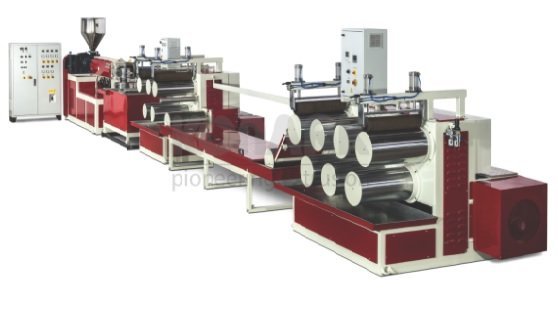

PP/HDPE Monofilament Extrusion Lines
| Model | KMF/65 | KMF/75 | KMF/90 |
| Material To Be Processed | PP, HDPE | PP, HDPE | PP, HDPE |
| Screw Dia | 65 mm | 75 mm | 90 mm |
| Barrel Feed Type | Smooth Feed | Smooth Feed | Smooth Feed |
| No. of Filament Lines | 140 Lines | 300 Lines | 400 Lines |
| Maximum Output | 60 Kg/Hr | 80 Kg/Hr | 150 Kg/Hr |
| Machine Connected Load | 58 KW (77 HP) | 70 KW (93 HP) | 110 KW (147 HP) |
| Dimensions ( L x W x H ) Apprx | 70 x 8 x 8 Feet | 75 x 8 x 8 Feet | 90 x 8 x 8 Feet |
PP Dan Lines ( Joint Filament Type Dan Lines)
| Model | KDF/80 | KDF/90 |
| Material To Be Processed | PP | PP |
| Screw Dia | 80 mm | 90 mm |
| Barrel Feed Type | Smooth Feed | Smooth Feed |
| No. of Filament Lines | 48 Lines | 60 Lines |
| Maximum Output | 110 Kg/Hr | 150 Kg/Hr |
| Machine Connected Load | 97 KW (129 HP) | 132 KW (176 HP) |
| Dimensions ( L x W x H ) Apprx | 85 x 8 x 8 Feet | 90 x 8 x 8 Feet |
