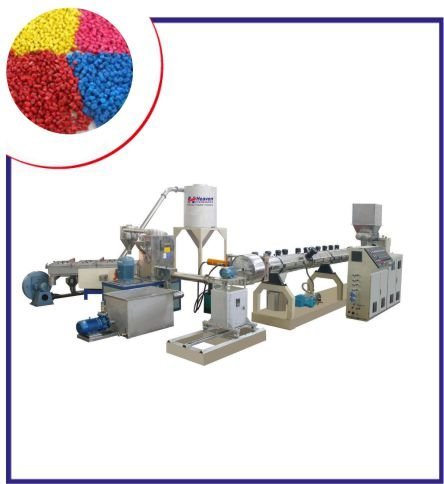

We offers various models for Recycling Line to make granules form woven sack industries and other plastic industries. We offer various range in screw diameter 75mm, 90mm and 100mm with / without vent system screw and barrel, die (Plan or Die Face cutter type) and palletizer unit.This plastic reprocess machine is used to process PE and polyethylene plastic waste to recover the scraps and byproducts at the end of plastic fabrication.
Features of Plastic Recycling Machine:
- Optimum product costing due to high productivity with less power consumption
- Nitrided screw and barrel made out from special nitro alloy steel for long life and trouble free operations
- Helical gear box with inbuilt thrust bearing
- Hydraulically operated platen type screen changer
- Palletizer with AC invertor drive
- Hydraulic Screen Changer
- Microprocessor based PID temperature controller
Optional:
- Melt Pressure Transducer
- AC Invertor Drive For Extruder
- Scrap Grinder
- Simple Mixer
- Agglomerator
Technical Specifications of Plastic Recycling Machine:
PLANT MODEL |
SCREW SIZE (MM) |
MAX PRODUCTION CAPACITY (KG / HR) |
TOTAL CONNECTED LOAD (KW) |
DIMENSION OF PLANT (FEET) | ||
---|---|---|---|---|---|---|
L | W | H | ||||
HERP/75 | 75 | 75 | 35 | 30 | 4 | 7 |
HERP/90 | 90 | 100 | 45 | 32 | 4 | 8 |
HERP/100 | 100 | 120 | 55 | 40 | 4 | 8 |
HERP/110 | 110 | 160 | 60 | 40 | 4 | 8 |
HERP/120 | 120 | 250 | 70 | 45 | 4 | 8 |
