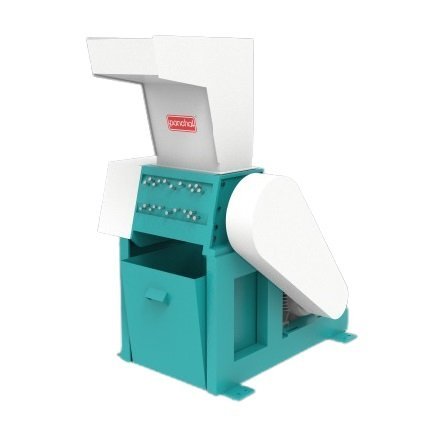

LUMPS series granulators enable gentle and thorough granulation of thick-walled mouldings, sheets, sprue cakes, pipes and profiles, etc.
The solid massive rotor that is made from one solid piece of metal.
Voluminous and large surface area plastic parts such as bumpers from the automotive industry or parts dismounted from old cars, plastic tanks, door interior claddings, etc can also be granulated.
A special rotor enables single stage granulation of even extremely massive lumps from production start-ups.
Description:
- Solid Massive rotor
- Robust Cutting Chamber
- D2 Steel Knives
- Drop down screen cradle
- Heavy Hopper
- Low RPM high Torque
- Safety interlock
- High performance with low energy requirement
SOLID ROTOR
The solid rotor enables more blade surface to quickly reduce lumps/purge into granulate with less dust and fines then the traditional blade rotor design.
Technology:
Grinder Rotor: Heavy duty solid rotor for thick wall product and small lumps and purge.
Control PanelControl Panel is consisting of all safety related to machine with Single phase preventer, Over load preventer.
Technical Data:
| MODEL | PPM-15LG | PPM-18LG | PPM-24LG |
|---|---|---|---|
| Main Motor (kW) | 7.5 | 15 | 22 |
| Cutter House Opening (mm) | 375 X 200 | 450 x 200 | 600 x 200 |
| Rotating Blades | 3 | 3 | 3 |
| Fix Blades | 4 | 4 | 4 |
| Production ( Kg./ Hr.) | 100-150 | 200-300 | 300-400 |
| Screen Hole (mm) | 8/10/12 | 8/10/12 | 8/10/12 |
| Rotor Type | Solid | Solid | Solid |
