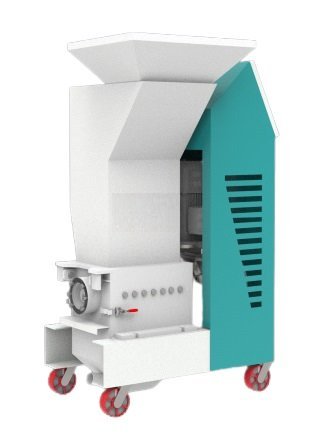

Beside-The-Press Series granulator are ideal for the processor who has small injection molding machines and wants a lot of value in a small package. This quiet, energy efficient granulator conserves valuable floor space while producing quality regrind from robot-fed sprues, runner and small parts. All models feature tangential feed, case hardened cutting chambers, low-speed motor and staggered rotors with replaceable cassette knives. The staggered rotor design produces more cuts per revolution, resulting in higher throughput. Smaller bites reduce the chance of jamming or shearing. The scissor cutting action of slanted rotor knives produce superior quality regrind. The staggered rotor combined with a low-speed motor, offers cleaner, quieter cutting and uses less energy.
LOW SPEED CUTTING SYSTEM
- Direct driven staggered rotor
- Slow rotor speed creates less noise and dust
- Easy access for maintenance and cleaning
- Sliding screen cradle
- Tilt Back Hopper
- 200 RPM Rotor
- Safety interlock
- Caster Mounted
The staggered rotor enables more blade surface to quickly reduce sprues and runners into granulate with less dust and fines then the traditional three blade rotor design.
Technology:
Grinder Rotor: The staggered rotor enables faster processing and provides a powerful cutting force.
Control Panel: Control Panel is consisting of all safety related to machine with Single phase preventer, Over load preventer.
Technical Data:
| MODEL | PPM-18-16SPG | PPM-18-24SPG | PPM-18-32SPG | PPM-18-40SPG | PPM-18-48SPG |
|---|---|---|---|---|---|
| Rotor Diameter (mm) | 180 | 180 | 180 | 180 | 180 |
| Rotor Width (mm) | 160 | 240 | 320 | 400 | 480 |
| Rotor Speed (rpm) | 200 | 200 | 200 | 200 | 200 |
| Motor Power (HP) | 3 | 4 | 5 | 5 | 5 |
| Rotating Blades | 12 | 18 | 24 | 30 | 36 |
| Fix Blades | 2 | 2 | 2 | 2 | 2 |
| Production ( Kg./ Hr.) | 30 | 50 | 80 | 100 | 150 |
| Screen Hole (mm) | 5-6-7-8 | 5-6-7-8 | 5-6-7-8 | 5-6-7-8 | 5-6-7-8 |
| Weight approx. (kg) | 150 | 180 | 200 | 250 | 300 |
