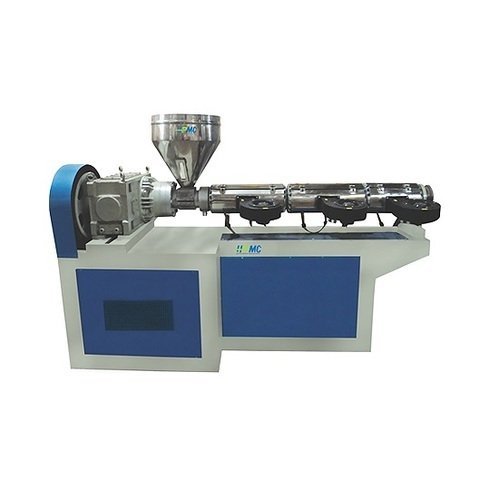

We present a single screw extruder plant which is mainly used for controlling, staking, gripping and sizing of PVC, HDPE pipes and profiles. The extrusion process is smoothly carried out by using extruder technology. Available in different specification, the plant meets the requirement international quality standard. Our range includes Screw extruder plant, Cooling unit, Cutting saw, Die head, Single screw extruder plant, Pvc pipe extruder plant, Hdpe pipe extruder plant, Pvc profile extruder plant, Cater puller, Tipping chute and high speed mixer.
Application –
-
To provide water connections to bathrooms.kitchens,sinks and lavatories
-
Water supply and distribution in complexes, houses, flats, offices, hostels etc
-
Hospitals and public places
-
Water distribution in villages and colonies through wells and over-head tanks.
Technical Specifications –
| Main Specifications | Machine Models | HPMC 75 | HPMC 90 | HPMC 100 | HPMC 75/45 | HPMC 90/55 |
| Extruder | Pipe Range | ½" – 2" | ½" – 2" | ½" – 2" | ½" – 2" | ½" – 2" |
| Output (kg/hr) | 50-60 | 80-100 | 100-130 | 70-80 | 120-130 | |
| Main Drive (kw) | 15 | 22.5 | 30 | 15/5 | 22.5/7.5 | |
| Barrel (kw) | 8 | 10 | 12 | 8/5 | 10/5 | |
| Die (kw) | 2 | 2 | 2 | 3 | 3 | |
| Screw Speed Variation | 15-45 | 15-45 | 15-45 | 15-45 | 15-45 | |
| Water Tank | Length (mtr) | 3 | 4 | 4 | 3 | 4 |
| Haul Off | Motor (kw) | 1.5 | 1.5 | 2.2 | 1.5 | 2.2 |
Application Of PVC Garden Pipe
- To provide water connections to bathrooms, kitchens, sinks and laboratories
- Water supply and distribution in complexes, houses, flats, offices, hotels etc
- Hospitals and public places
- Water distribution in villages & colonies through wells and over head tanks
Salient Features Of Garden Pipe
- Smooth surface
- Light in weight
- Easy to bend
- Dimensionally precise and resistance to distortion
- High temperature resistance
Technical Specifications :
| MAIN SPECIFICATIONS | EXTRUDER | WATER TANK | HAUL OFF | |||||
| MACHINE MODELS | PIPE RANGE | OUTPUT | MAIN DRIVE | BARREL | DIE | SCREW SPEED VARIATION | LENGTH (in Mtrs) | MOTOR (Kw) |
| HPMC 75 | 1/2"-2" | 50-60 Kg/Hr | 15 | 8 | 2 | 15-45 | 2 | 1.5 |
| HPMC 90 | 1/2"-2" | 80 -100 Kg/Hr |
22.5 | 10 | 2 | 15-45 | 4 | 1.5 |
| HPMC 100 | 1/2"-2" | 100-130 Kg/Hr |
22.5 | 12 | 2 | 15-45 | 3 | 1.5 |
