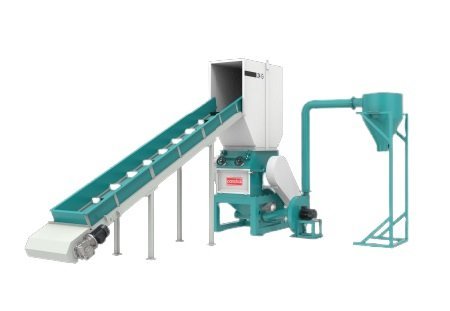

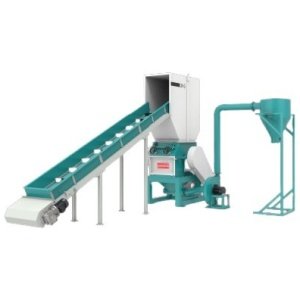

Rolls of waste plastic film and sheet are usually dealt with in two ways. According to size, complete rolls can be fed directly into granulators from the 18″-24″-Series and upwards. A combination of robust components and a constant cutting circle ensures that even thick section of film/sheet are sliced apart easily. Alternatively, and according to cutter-house width, rolls of film/sheet are unwound and drawn continuously into the appropriate granulator by means of a roll-feed system mounted on the granulator in-feed. The superior design of the cutter-house, rotors and knives ensures that even thin film is cut through cleanly and precisely.
Description:
- Special Rotor Design for Thin film and Sheet.
- Water cooling system also provided on body (Optional)
- Curved Backwall with more are for large volume parts
- Specially developed 3rd knives/blades -deflector wedge
- Strong Welded Steel construction
- D2 Steel Blades/Knives
- Heavy duty bearings & Housing out of cutting chamber
- Tilt Back Hopper with Auger (optional-hydraulic)
- Jig Fixture for Knives to adjusted outside of the machine
- Safety interlock
- Dropdown Screen Cardle on front side
Technology:
Grinder Rotor: Provides full and easy access to the complete interior of the cutting chamber including the granule bin and the screen. This gives unmatched access to both rotating and fixed knives when serviced. And, when you change material and/or colour, you get complete control of the cleaning – Visually clean inspection
Front Screen Cardle: Provides full access to the interior of the cutter house. Cleaning and maintenance with full visibility and accessibility.
Manual Jack: Provides a secure and efficient opening of the granulator.
V Belt Drive: Provides powerful and energy-saving granulation at the same time.
Cross Body Opening: Provides full access to the interior of the cutter house. Cleaning and maintenance with full visibility and accessibility.
Jig Fixture: Rotor and fixed knives/blades are adjusted outside of the granulator by using jig fixture.
Technical Data:
| MODEL | PPM-40GF | PPM-30GF | PPM-24GF | PPM-18GF | PPM-15GF | PPM-12GF |
|---|---|---|---|---|---|---|
| Main Motor (HP) | 75 | 50 | 30 | 15 | 10 | 5 |
| Cutterhouse (Inches) | 40×36 | 30×26 | 24×22 | 18×8 | 15×5 | 12×12 |
| Production Kg./Hr. | 500-600 | 350-400 | 200-250 | 100-150 | 75-100 | 50-75 |
| Screen hole (mm) | 8/10/12 | 8/10/12 | 8/10/12 | 8/10/12 | 8/10/12 | 8/10/12 |
| Rotor Type | Open/Staggerd | Open/Staggerd | Open/Staggerd | Open/Staggerd | Open/Staggerd | Open/Staggerd |
| Blower with cyclone* | 3HP | 3HP | 3HP | 2HP | 2HP | 1HP |
