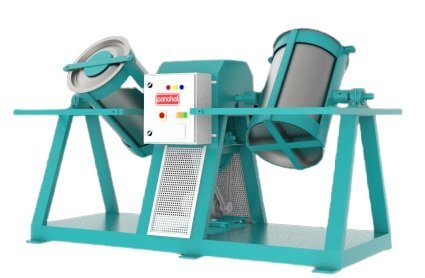

Specially designed for mixing Virgin + master batch for homogenizes mixing for better processing extruder for better performance of color.
Description of Operation:
Designed for mixing Virgin + master batch + Pigment for homogenizes mixing for better processing extruder for better performance of color..
Features:
- Tank in Stainless Steel 304
- LOW RPM
- Automatic Timer settable 8-10 minutes per batch
- Single and also Double Drum or Conical Tumbler available
- Safety Bar on Front and Back of Mixer
- Special Gear Motor with belt Drive
Technical Data:
| MODEL | PPM-25TM-S | PPM-25TM-D | PPM-50TM-S | PPM-50TM-D | PPM-100TM-S | PPM-100TM-D |
|---|---|---|---|---|---|---|
| Batch Capacity Kg. | 25 KG | 25 + 25 KG | 50 KG | 50 + 50 KG | 100 KG | 100 + 100 KG |
| Main Motor (HP) | 2 HP | 2 HP | 3 HP | 3 HP | 5 HP | 5 HP |
| Auto Timer (min) | 08-Oct | 08-Oct | 08-Oct | 08-Oct | 08-Oct | 08-Oct |
| Drum Material | SS | SS | SS | SS | SS | SS |
| Type | Drum or Conical | Drum or Conical | Drum or Conical | Drum or Conical | Drum or Conical | Drum or Conical |
