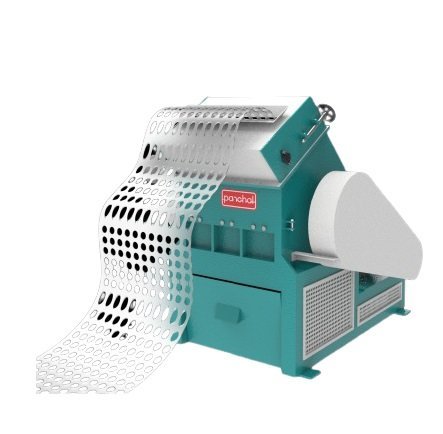

Thermoforming Series granulators are dedicated to the direct recycling of waste from thermoformed plastic packaging material. They cut to pieces whole foil, skeletal foil and partially punched foil into high-quality regrind at up to 1,000 lbs./hour. The granulator’s fully integrated Roll Feed System –600, 1000 & 1350mm wide – draws in continuous sheet of waste directly from the thermoforming machine. Web in-feed is automatically synchronized to match the thermoforming machine speed. The diameter of the rotor assembly is 250 mm /10″ and motor sizes of up to 20HP are available. Highly effective soundproofed encapsulation cuts noise significantly.
Description:
- Staggerd Rotor Design for sheet and thermoformed sheet waste.
- Roller feeding Device with auto start-stop system
- Online system working with thermomforming machine also provided
- Curved Backwall with more are for large volume parts
- Specially developed 3rd knives/blades -deflector wedge
- Strong Welded Steel construction
- D2 Steel Blades/Knives
- Heavy duty bearings & Housing out of cutting chamber
- Tilt Back Hopper with Auger (optional-hydraulic)
- Jig Fixture for Knives to adjusted outside of the machine
- Safety interlock
- Dropdown Screen Cardle on front side
Technology:
Grinder Rotor: The A-Series Cutting technology is able to cut most plastic film, Tape, Fabric & Bags. Everything is cut to the desired particles size.
Technical Data:
| MODEL | PPM-600GT | PPM-1000GT | PPM-1350GT |
|---|---|---|---|
| Main Motor (HP) | 15-30 | 30-50 | 50-75 |
| (Cutterhouse (Inches) | 25×600 | 25×1000 | 25×1350 |
| Production Kg./Hr. | 200-250 | 300-500 | 500-600 |
| Screen hole (mm) | 8/10/12 | 8/10/12 | 8/10/12 |
| Rotor Type | Open/ Staggerd | Open/ Staggerd | Open/ Staggerd |
| Blower with Cyclone* | 2 HP | 2 HP | 2 HP |
