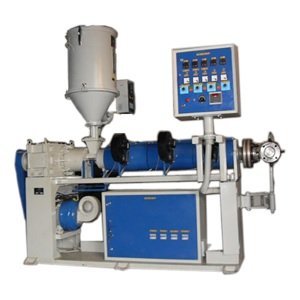

The Barrel is made of special alloy steel and is honed and nitrided. The Screw is made up of EN material and nitride and hard chrome plated. The machine comes with a hopper dryer and loader. The Screw is combined with the barrel having a properly equilibrated geometry. Extruder control is through a Modular Automation system that is assembled in line and allows the customer to synchronize it with the complete line.
Advantage :
- Robust construction and heavy frame.
- Higher output
- Good melt homogeneity.
- Low power consumption.
- Simple Panels for effective and efficient usage.
- Standard parts for easy replacement.
- Branded drives and motors are used for faster service.
- Can be customized
Model No L / D Drive HP Type BarrelCooling No of Zones HeatingPowerKW PVC Output PE Output
OEC – 1230 24:1 5 AIR 3 6 20 15
OEC – 1245 24:1 / 26:1 10 AIR 3 7 40 15
OEC – 1265 24:1 / 26:1 15 AIR 3 14 80 45
OEC – 1275 24:1 25 AIR 4 17 150 125
OEC – 12120 24:1 60 AIR 4 37 300 200
