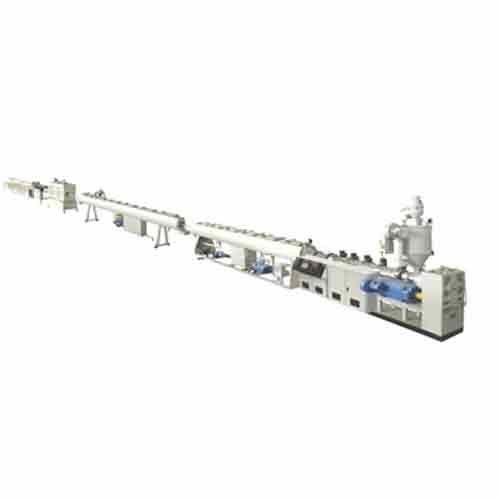

Single Screw Extruder Line Machine are offered for extrusion of polyolefin (HDPE/LDPE/PLB Ducting, PP, PPR) PIPES. The extruder with screw diameters 25-120 mm is available for output range 5 Kg/hr to 1000 Kg/hr. The next generation extruders with barrier screw and groove feed bush results into higher output rate, homogeneous plasticizing and less material slippage.
Key features:
- Barrier screws- high homogeneous plasticizing- less material slippage
- Screw geometry for hdpe & pp pipe extrusion.
- Grooved feed bush – higher output – reduced power consumption
- Higher productivity due to longer l/d ratio & flexibility of wide range of processing, less material slippage & best plasticization.
- Over all machine design is easy handling, easy maintenance and operation unit wise.
- Most optimized output at different size of pipe od and thickness.
- Superior physical properties of end product
- Extruders to process pe/ppr
- Synchronization of high rated ac drives.
Barrier Screw:
- Grooved Feed System
- Higher production output
- Improved material conveying capacity
- Uniform flow throughout and consistent melt temperature
- Pressure Invariance
| MODEL | Screw Dia MM | L/D ratio | Extruder drive KW | Output in Kgs/hr |
| ADX 65G | 65 | 30:01:00 | 55 | 170-190 |
| ADX 65GH | 65 | 30:01:00 | 75 | 200-220 |
| ADX 75G | 75 | 30:01:00 | 75 | 220-250 |
| ADX 90G | 90 | 30:01:00 | 110 | 325-350 |
| ADX 90GH | 90 | 30:01:00 | 150 | 430-450 |
| ADX 120S | 120 | 30:01:00 | 180 | 500-550 |
| ADX 120SH | 120 | 30:01:00 | 315 | 750-800 |
