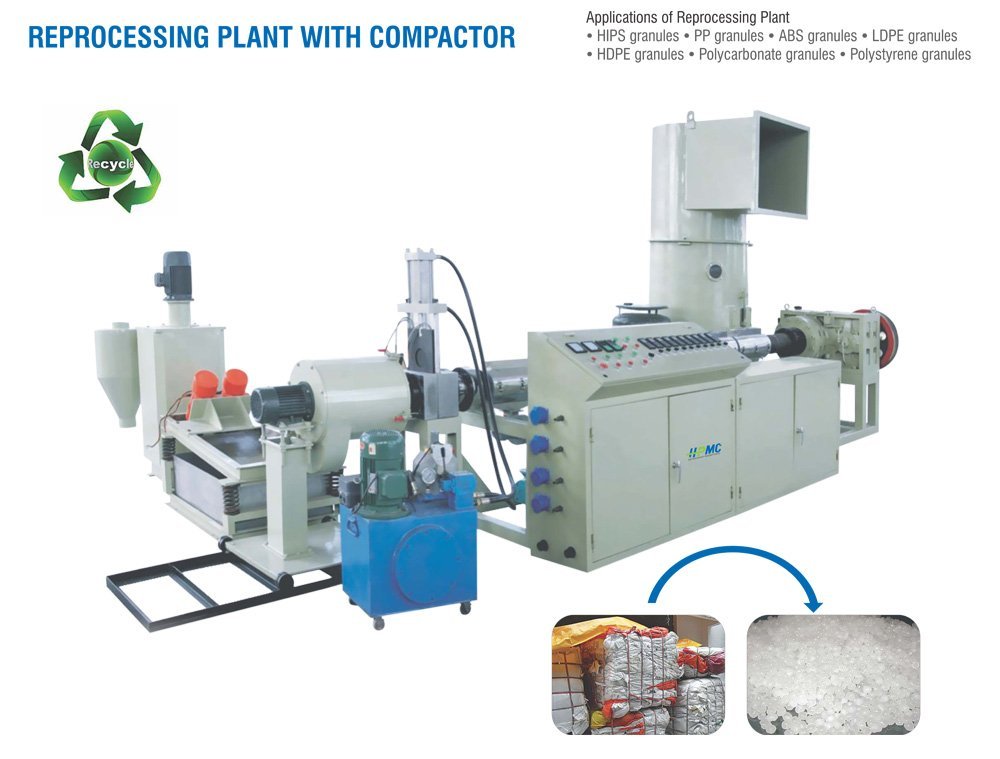

Reprocessing Plant with Compactor (For Raffia) offeredfind use in reprocessing of woven bag/PP Rafia and allows direct feeding of bags without requirement of its crushing. With vented type extruder, these plants also do not require support of grinder or agglomerator and provides for optimum performance support. Coming with output capacity of up to 200kg/hr, the plant also provides for superior filtration and output support with minimal requirements of processes like shredding, grinding, densification and others. Some of the standard features of these plans include superior feed capacity, economical reprocessing, excellent filtration support, screw design and others.
Applications –
- HIPS granules
- PP granules
- ABS granules
- LDPE granules
- HDPE granules
- Polycarbonate Granules
- Polystyrene Granules
This machine used for recycling of woven bag/PP Rafia.The bag can be fed directly without crushing.No grinder or agglomerator is required.Extruder is vented type fpr removal of volatile gases from the waste material.It is filled with screen change for better performance.
| Model | Extruder 100 | Extruder 110 | Extruder 120 |
| Belt Conveyor | Magnetic frame with 1.1 kw Motor | Magnetic frame with 1.5 kw Motor | Magnetic frame with 1.5kw Motor |
| Compactor Motor (kw) | 55 | 55 | 75 |
| Production (kg/hr) | 200 | 300 | 400 |
| Dia Screw (mm) | 100 | 110 | 120 |
| Main Motor (kw) | 45 | 75 | 100 |
| L/D Ratio | 33:1 | 33:1 | 30:1 |
| Hydraulic Screen Changer | 8/3 | 10/3 | 10/3 |
| Water-Ring Pelletizer Load (kw) | 2.2 | 2.2 | 3.7 |
| Vibrating Screen Motor Power (kw) | 1.75 | 2.2 | 3.7 |
| Dehydrating Machine Motor Power | 5 | 5 | 5 |
| Pump Conveying System Motor | 3 | 3 | 3.7 |
