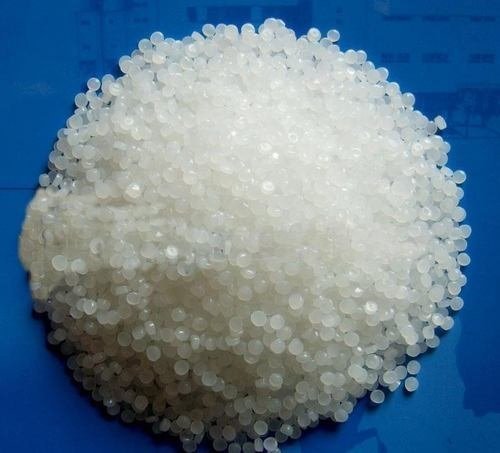

We are a unique entity in the industry, actively committed to offering an optimum quality range of Reliance HDPE PE 100 Pipes 0.3 MFI 46GP003.
Details:
- This grade meets the MFI, Density & Hydrostatic strength requirements of material grade PE-100 as per IS: 4984. When incorporated with an adequate quantity of carbon black as specified in clause 5.2.3 of IS: 4984, pipes will meet PE:100 requirements.
- Pipes made from Reliance HDPE PE 100 Pipes 0.3 MFI 46GP003 grade passes the Internal Pressure Creep Rupture Test when tested with 5.5 MPa induced stress at 80 o C for 165 hrs and with 5.7 MPa induced stress at 80 o C for 48 hrs as per clause 8.1 of IS 4984, thereby meeting the requirements of PE100 grade.
- The grade conforms to ISO 4427 specification shown and has been certified for MRS> 10MPa as per ISO 9080.
| Property | Test Method | Unit | Remarks |
| Hydrostatic Pressure Test | ISO 1167 | Hrs | |
| 12.4 Mpa@ 20C | >100 | ||
| 5.4 Mpa @ 80 C | >165 | ||
| 5.0 Mpa @ 80 C | >1000 | ||
| MRS | ISO 9080 | MPa | >8.0 |
| SCG | ISO 13479 | Hrs | >500 |
Typical Characteristics
| Property | Test Method | Unit | Typical Value** |
| Melt Flow Index (190 C/5.0 Kg) | ASTM D1238 | gm/10 min | 0.3 |
| Density (23 o C) | ASTM D1505 | gm/cm 3 | 0.945 |
| Thermal Stability (O.I.T.) 200 o C | ASTM D3895 | Min | >30 |
| Tensile Strength at Yield | ASTM D638 | MPa | 28 |
| Elongation at Break | ASTM D638 | % | >600 |
| Flexural Modulus | ASTM D790 | MPa | 850 |
| Notched Izod Impact Strength | ASTM D256 | J/m | No Break |
| ESCR, F 50 | ASTM D1693 | Hrs | >1000 |
