Special Features:
- Robust & strong in construction.
- Unique design of Bearing Housing.
- Efficient cooling for Stationary disc provide with water circulation pump.
- Low residence time means lower thermal stress on the process material.
- Low power consumption with high output, so economical & cost effective.
- Long service life of the discs between re-sharpening and replacements.
- Low maintainance with consistent output quality.
- One Piece Grinding Disc made from Graded Alloy Steel.
- Fast and easy replacement and adjustment of Fixed and Rotating Discs.
- Limit switch is integrated with Mill door to prevent accidental re-start of the motor when the door is opened.
- Easy to clean.

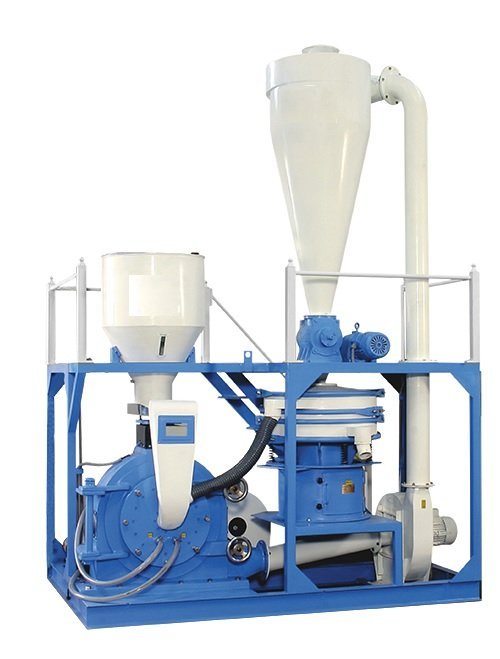

| Model | PPU -150 |
|---|---|
| Disc Diameter | 300mm |
| Main Motor Ac | 22.5Kw |
| Blower Motor | 2.25Kw |
| Air Lock Motor | 0.37Kw |
| Vibrating screen | 0.37Kw |
| Total Load | 27.75KW |
| Floor Space (Length) | 2200mm |
| Width | 1400mm |
| Height | 3100mm |
| Feed Size | 7-8mm |
| Mesh Size | 18mesh |
| Output | 140-160Kg/Hr |
