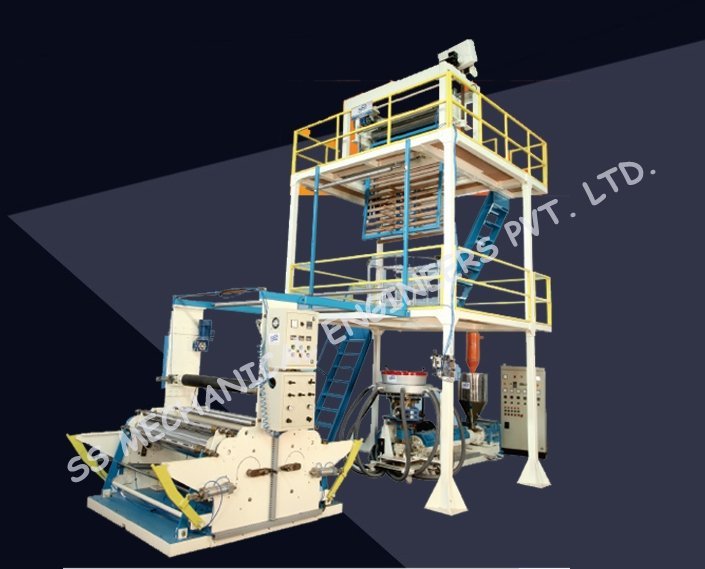

We Offer a diverse range of customized Monolayer Blown Film Plant to suit a customer's specific requirement.Our most appreciated Monolayer Blown Film Plant are available with outputs ranging from 35 kg/hr to 450 kg/hr and lay-flat widths ranging from 50 mm to 6000 mm for processing polymers as LD, LLD, HM / HDPE.The Monolayer Blown Film Plant are also available with special configurations to process wide width HDPE film, similarly these lines are also available with up to 4 color inline flexographic printing.Our Monolayer Blown Film Machine incorporate advanced features like-grooved feed barrel, barrier screw, dosing system, Liquid PIB dosing system, manual as well as automatic screen changer, Rotating Die / platform , internal bubble cooling, automatic bubble cage, online thickness monitoring and control, 2/4 station surface and center winders , Auto tension control, Corona treaters etc. for longer life, higher productivity and better quality.
Applications:
- Garbage Bags
- Carry Bags
- Shopping Bags
- Linears
- Construction Film
- T-Shirts Bags
- Aggriculture Film
Specifications:
| Model | SLL-550-H | SLL-650-H | SLL-750-H | SLL-900-H |
| Screw Size (MM) | 55 | 65 | 75 | 90 |
| Layflat Width (MM) | 300 – 1000 | 400 – 1200 | 500 – 1600 | 600 – 2000 |
| Film Thickness (Micron) | 20-200 | 20-300 | 20-300 | 20-400 |
| Max. Extrusion Output (Kg/Hr) | 90 | 120 | 180 | 260 |
| Main Motor (KW) | 22.50 | 30 | 45 | 75 |
|
Machine Dimension |
5.5 x 3 x 5 |
8 x 3.5 x 6 |
9 x 4 x 7 |
10 x 5 x 8 |
