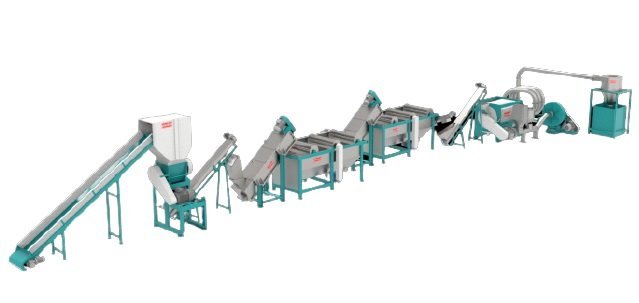

The LDPE Plastic Waste Washing Machine is primarily used to recycle waste PP/PE film and woven bags, among other things.
- Conveyor belt
- Wet crusher
- Friction Washer
- Sink Float Tank
- Horizontal Dryer
- Thermal dryer
- Bagging Station
Special Design Features:-
– The LDPE washing system was created to wash film or thin material with contamination.
-Grinding machine is specifically designed for film or thin materials to produce standardized particle sizes that are easy to wash and dry.
-Friction Washer is used for remove dirty and sands by the centrifugal force producing by the high-speed rotating of the rotor.
-Sink-float tank is used for floating material like film/lables like LDPE/HDPE/PP etc on the top and at the bottom all the sink material ilke PVC/PET/PC etc. both have different Discharge point to collect different material, based on density.
-The moisture content of the finished product is regulated by horizontal dryers and thermal drying systems. The material is ideal for high-quality pelletizing at a moisture content of less than 5%
Technical Data:
| CAPACITY KG/HR | INSTALLATION POWER KW | REQUIRED AREA (M3) | MANPOWER | ELECTRICITY CONSUMPTION (KW/H) | COMPRESSED AIR (M3/MIN) | WATER CONSUMPTION (M3/HR) |
|---|---|---|---|---|---|---|
| 500 | 200 | 500 | 8 | 280 | 0.5 | 0.75 |
| 1000 | 400 | 700 | 12 | 700 | 0.5 | 2.25 |
| 1500 | 600 | 900 | 18 | 1300 | 0.7 | 4.5 |
| 3000 | 900 | 1200 | 30 | 2300 | 1 | 9 |
| 6000 | 900 | 1200 | 30 | 2300 | 1 | 9 |
