Benefits:
- Reduce the cost by using IInd grade material
- Better finishing outside and inside
- Easy to compete non-ISI market demand
Features:
- 100,000-120,000 meter Inline Pipe Production/ Day
- 0.30 unit/kg power consumption
- Extruder Throughput for pipe up to 250 Kg/Hr
- Machine Line speed: 80-100 Mpm
- Belt Type Servo Insertion with insertion capacity 500 Drippers/Min
- Servo Perforation unit with drilling capacity of 500 Drippers/Min
- Precise speed control Haul-off unit
- Coil to coil weight variation is within +/- 0.5%of coil weight
- PLC based machine with inbuilt AC for control panel
- Perforator can drill 1, 2, 3, 4 holes as per customers requirements
Technical Specifications:

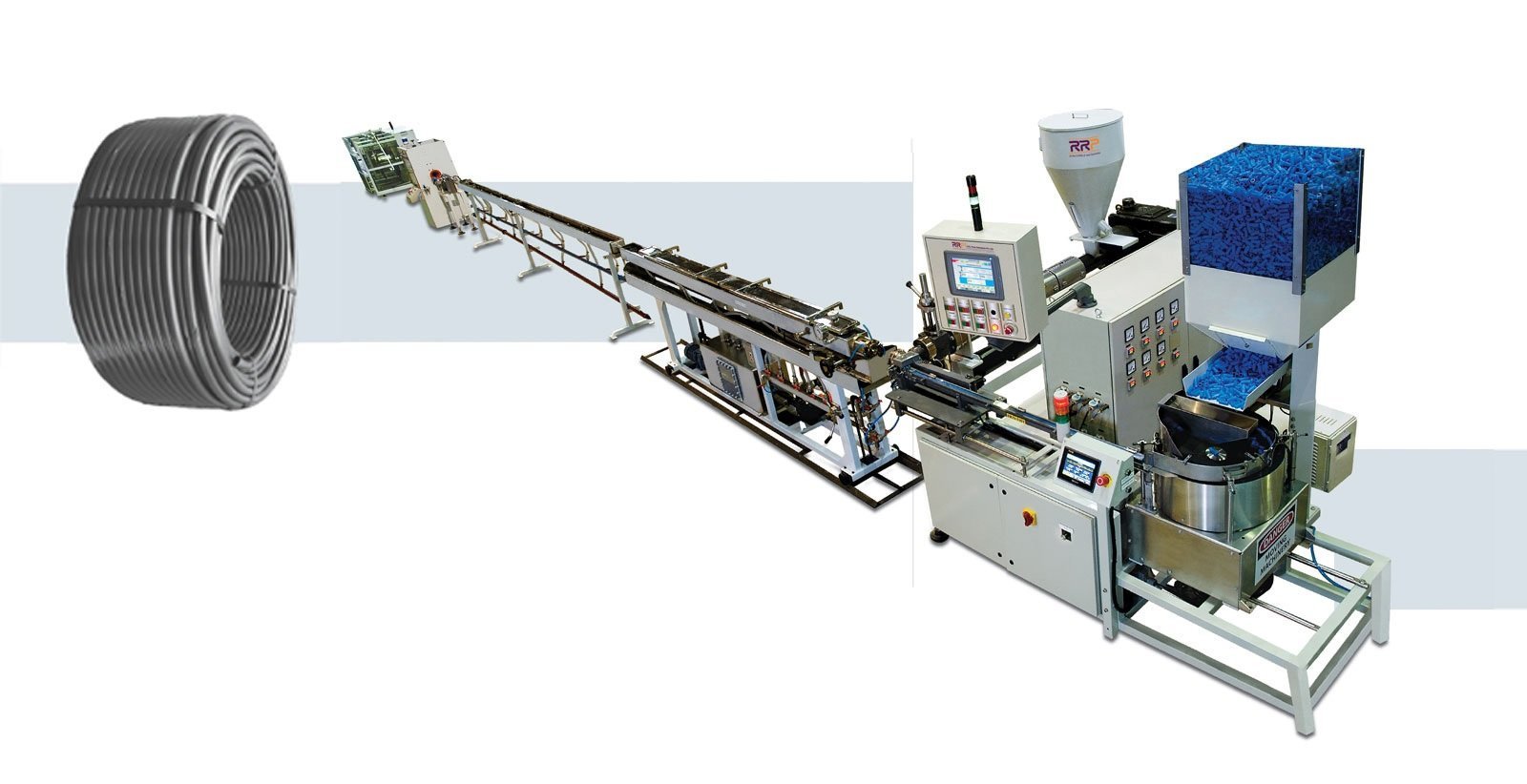

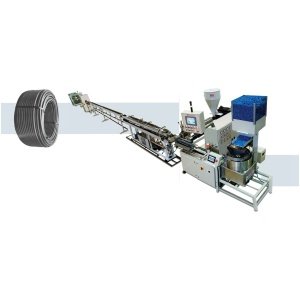

| ONLINE / INLINE DRIP IRRIGATION PIPE PLANT | ||||||
|---|---|---|---|---|---|---|
| Model | Pipe Size (MM) | Output (Kgs/hr) |
Machine Line Speed (MPM) |
Insertion Type |
Perforation Type |
Connect Load (KW) |
| RRPP – 45/33 | 12-20 | 180 | 60-70 | Belt Type – Servo | Mechnical | 62 |
| RRPP – 65/33 | 12-32 | 250 | 90-100 | Belt Type – Servo | Servo Perforation | 109 |
