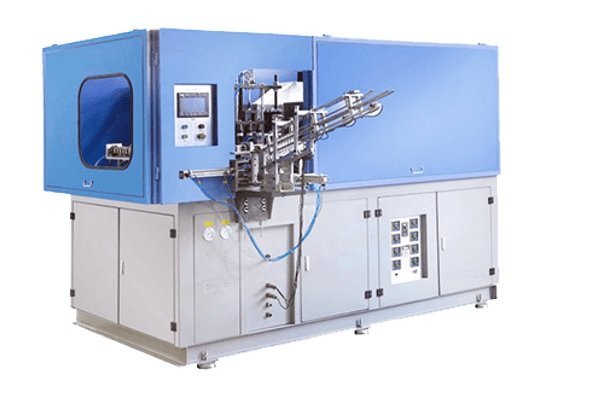

Inspired by the MAG HFY series, the MAG AY series is suitable for the on-the-go market with very high output rates for single-serve PET bottles. Its improved productivity helps to reduce operating costs. This machine can be used in diverse applications such as for all food and non-food liquids in PET packaging: still or sparkling water, CSD, juices, milk or other dairy products, sauces or detergents.
From the preform loading to bottle blowing & ejection, all the steps in the process are automatic and without the touch of human hands.
Features & Advantages:
Fast Machines with output rates up-to 6000 BPH thus optimizing productivity and production cost.- Precise heat control due to layered heating system.
- Reduced electricity consumption: reflectors are close to the preforms in the oven.
- Preform Feeder Reliability: speed regulation loop from the elevating column to the orientation.
- Parts changed less frequently: parts are more robust, with optimized service life.
- OMRON PLC with touch screen keypad.
Fast Machines with output rates up-to 6000 BPH thus optimizing productivity and production cost.Technical Specifications:
| General Information | Unit | MAG AY1500-2 | MAG AY2000-2 | MAG AY600-4 | MAG AY1500-4 | MAG AY2000-4 | MAG AY600-6 | |
|---|---|---|---|---|---|---|---|---|
| PRODUCT SPECIFICATION | Container Volume | L | 1.5 | 2 | 0.6 | 1.5 | 2 | 0.6 |
| Cavitation Number | Nos. | 2 | 2 | 4 | 4 | 4 | 6 | |
| Max. Container Ø | mm | 93 | 103 | 68 | 93 | 103 | 98 | |
| Max. Container Height | mm | 340 | 340 | 250 | 340 | 340 | 250 | |
| Max. Neck Ø | mm | 45 | 45 | 40 | 45 | 45 | 40 | |
| MACHINE SPECIFICATION | Output | BPH | 2000 | 1800 | 4000 | 3600 | 3600 | 6000 |
| Opening stroke | mm | 125 | 125 | 125 | 125 | 125 | 125 | |
| Mold Thickness | mm | 180 | 180 | 180 | 200 | 200 | 200 | |
| Connected Load | Kw | 15 | 15 | 20 | 30 | 30 | 30 | |
| Dimension of theMachine | mm | 3*1.4*2 | 3.2*1.4*2 | 3.3*1.7*2 | 4.1*2*2 | 4.3*2*2 | 4.3*2*2 | |
| Machine Weight | Kg | 2500 | 3000 | 3500 | 5000 | 5000 | 5000 | |
| AIR SYSTEM | L.P. Working Pressure | Bar | 10 | 10 | 10 | 10 | 10 | 10 |
| L.P. Air Consumption | m3/min. | 1.6 | 1.6 | 1.6 | 2.4 | 2.4 | 2.4 | |
| Max Blowing Pressure | Bar | 30 | 30 | 30 | 30 | 30 | 30 | |
| H.P. Air Consumption | m3/min. | 1.6 | 1.6 | 2.5 | 3 | 3 | 3.5 | |
| CHILLER | Operating Pressure | Bar | 5 | 5 | 5 | 5 | 5 | 5 |
| Temperature Range | 0C | 5 to 10 | 5 to 10 | 5 to 10 | 5 to 10 | 5 to 10 | 5 to 10 | |
| Water Consumption | L/min. | 30 | 30 | 45 | 45 | 45 | 45 | |
