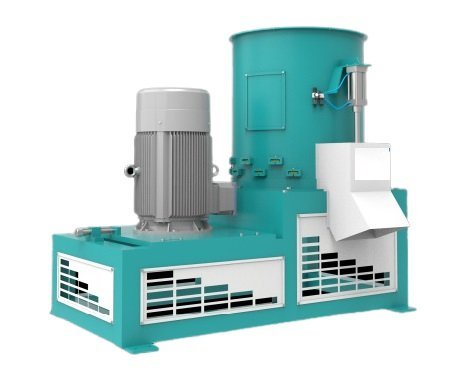

This D-Series is specially design for processing material like – Polyester, Nylon, PP , in fiber, tape, undrawn wiry, big bags, loose ropes, threads etc. Agglomerator is ideal to convert plastic waste dense cubes for easy feeding into Extruder. Description of Operation The densifier operates in “batches” and the processing chamber is loaded before and during the process. The high-energy-blades shred the material and press it under the rotor due to its design. The friction heats the material to the processing temperature. At this temperature the material becomes highly viscous. Subsequently cold water is injected into the process which causes the material to densify.
Description of Operation: The densifier operates in “batches” and the processing chamber is loaded before and during the process. The high-energy-blades shred the material and press it under the rotor due to its design. The friction heats the material to the processing temperature. At this temperature the material becomes highly viscous. Subsequently cold water is injected into the process which causes the material to densify.
Technology:
Cutting Technology: The D-Series Cutting technology is able to cut most plastic film, Tape, Yarn, Wiry, Fabric & Bags. Everything is cut to the desired particles size.
Pneumatic Discharge: Discharge system is with Pneumatic and Screw type for fastest discharge of material from the drum.
Control Panel: Control Panel is consisting of all safety related to machine with Single phase preventer, Over load preventer.
Technical Data:
| MODEL | PPM-540D | PPM-430D | PPM-270D | PPM-180D | PPM-100D | PPM-60D |
|---|---|---|---|---|---|---|
| Main Motor (HP) | 540 | 420-340 | 270-220 | 180-150 | 100-75 | 60 |
| Batch Capacity KG. | 150-200 | 100-150 | 75-120 | 60-90 | 24-45 | 13-20 |
| Production Kg./Hr. | 1000-1600 | 800-1200 | 700-1000 | 400-600 | 170-200 | 80-100 |
