Raw material & Final product:
|
Raw material & formulation |
Waste PP woven bag and PE film.etc |
|
Final product & Output capacity |
Input capacity : around 600-700kg/hour Clean dry PP/PE scraps :500kg/h |
|
Description of final product |
Scrap size: 50mm |
Automation:
|
Warehouse/Workshop |
Dimension (M*M*M): 35(L)×5(W)×4.5(H); (the recycling line layout is flexible, “I” or “U”or “L” shape will be according to client`s factory building ) Crane: Machine positioning(provide by customer) |
|
Power supply & Installation power |
3-phase, 380V, 50 Hz; |
|
Wire/cables(provide by customer) |
Wires/cables from power supply to control cabinet of this production line; all electrical cables from control cabinet to each machine. |
|
Water supply hose/pipe(provide by customer) |
Water supply to machines and pools |
Motor Power:
|
Installation power |
Max 200KW (Actual power consumption percentage: 70-80%) |
|
Water supply |
Consumption: about 5 ton/h, can be recycled use, Water pressure: 0.4Mpa |
Applications :

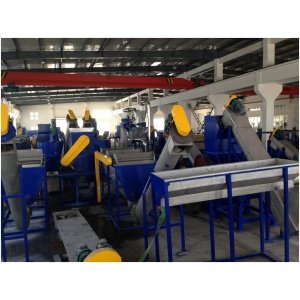

WASHING LING FOR PP/HD/LD/HM PLASTIC SCRAP
