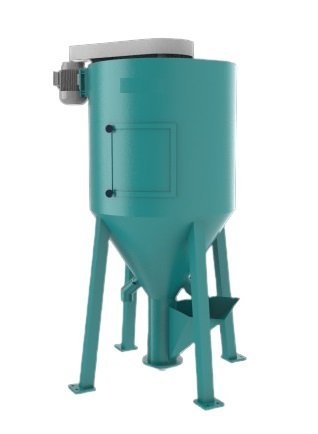

Specially designed for mixing Virgin + Master batch for homogenizes mixing for better processing extruder for better performance of color. Special tools design as per application.
Description of Operation:
Specially designed for mixing Virgin + Master batch for homogenizes mixing for better processing extruder for better performance of color.
Special tools design as per application.
Features:
- Tank in Stainless Steel 304
- Medium Rotor Speed
- Automatic Timer setable 8-10 minutes per batch
- Cnetral screw with removable section at the top and bottom.
- Electronic control panel
Technical Data:
| MODEL | CAP. IN LITERS | CAP. IN KG | MOTOR HP |
|---|---|---|---|
| PPM-100 VMS | 200 L | 120 KG | 1 HP |
| PPM-200 VMS | 250 L | 200 KG | 3 HP |
| PPM-500 VSM | 850 L | 500 KG | 4 HP |
| PPM-1000 VSM | 1650 L | 1000 KG | 5 HP |
| PPM-1500 VSM | 2450 L | 1500 KG | 7.5 HP |
| PPM-2000 VSM | 3600 L | 2000 KG | 10 HP |
| 5000 VSM | 5000 L | 3000 KG | 15 HP |
| 8000 VSM | 8000 L | 5000 KG | 15 HP |
| 10000 VSM | 10000 L | 6000 KG | 15 HP |
| 12000 VSM | 12000 L | 7200 KG | 20 HP |
| 15000 VSM | 15000 L | 9000 KG | 20 HP |
| 16500 VSM | 16500 L | 10000 KG | 20 HP |
| 20000 VSM | 20000 L | 12000 KG | 20 HP |
| 28000 VSM | 28000 L | 17000 KG | 30 HP |
| 40000 VSM | 40000 L | 24000 KG | 40 HP |
| 50000 VSM | 50000 L | 28500 KG | 50 HP |
