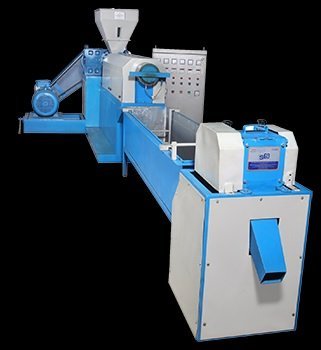

Re-cycling Pellitizer Extrusion Plant to manufacture poly waste granuals, consisting of single screw extruder with AC main drive motor, reduction gear box, screw & barrel made of nitro alloy steel duly nitride and hardened, Die Head, Bend type heaters, Water tank, Pellitizer with electric motor and control cabinet fitted with temperature controllers, voltmeters, ammeters, starters etc. and all other standard accessories and electricals as detailed in specifications.
Specifications:
| Model | RP-65 | RP-75 | RP-90 | RP-100 | RP-120 | RP-140 |
| Screw Size (MM) | 65 | 75 | 90 | 100 | 120 | 140 |
| L/D Ratio | 26 : 1 | 26 : 1 | 26 : 1 | 26 : 1 | 26 : 1 | 26 : 1 |
| Output (Kg/Hr.) | 50-60 | 60-80 | 90-120 | 100-150 | 200-250 | 300-350 |
| Main Drive (HP) | 15 | 20 | 25 | 30 | 50 | 75 |
| Heating Load (KW) | 12 | 18 | 22 | 28 | 32 | 36 |
| Strand Pellitizer (HP) | 1 | 2 | 2 | 2 | 3 | 5 |
