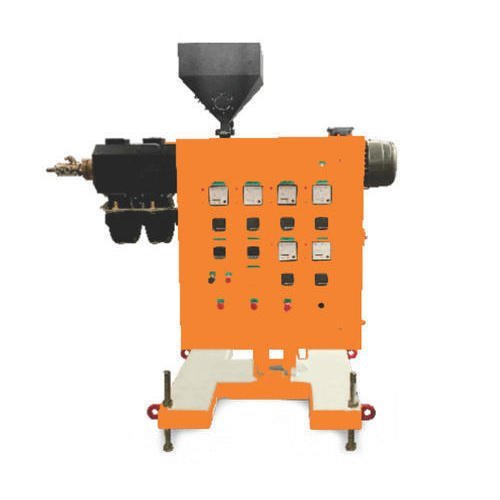

Backed by years of industry experience, we are engaged in offering a premium quality range of LX Series Single Screw Extruder Line.
Details:
- Understanding extrusion market requirements thoroughly, Pingaxh extruders take lead in technical superiority
- The screw and barrel are designed and developed to match specific raw material and end product requirement by simulation software
- We offer barrier screws yielding improved output rate, low melt temperature and improved melt quality
Only Bare Extruders For Following Application:
- Soft PVC tubing for medical applications
- Soft PVC garden hose
- Suction hose pipes
- HDPE/PP corrugated pipes
- PP tubes for automobiles
- PU tubes for pneumatic pipes
- Cable coating
- Nylon tubing for medical application
Specifications:
| Model | PX 18* | PX 25* | PX 40 | PX 50 | PX 65 | PX 75 | |
| Pipe Range | mm | 18 | 25 | 40 | 50 | 65 | 75 |
| L : D Ratio | 20:1 | 24:1 | 26:1 | 26:1 | 26:1 | 26:1 | |
| Main Motor | KW | 0.75 | 3.75 | 7.5 | 15 | 30 | 37.5 |
| Max. Throughput (HDPE) | kg/hr | 1.5-2 | 5-6 | 18-20 | 36-40 | 90-100 | 120-130 |
