Special Features:
- Compact and low sound level.
- Low power consumption with high output.
- Inline grinding prevents contamination & dust formation on scrap.
- Fully hygienic processing of food grade sheets.
- Low maintenance cost.
- Easy & fast cleaning system.
- Due to continuous uninterrupted operation saves Iabour.

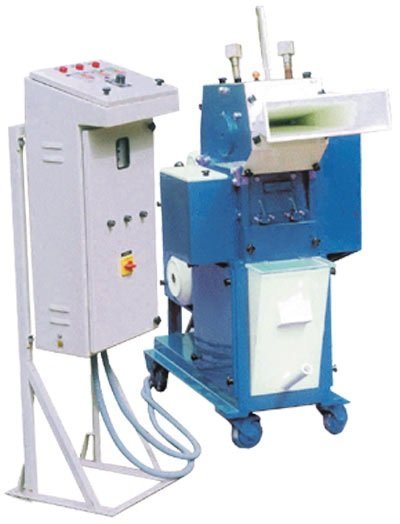

| TECHNICAL SPECIFICATIONS OF INLINE/OFFLINE TRIM & SHEET GRANULATOR | ||||||
|---|---|---|---|---|---|---|
| Model | PSF – 200 | PSF – 300 | PSF – 500 | PSF – 600 | PSF – 700 | PSF – 900 |
| Length of Blades | 200mm | 300mm | 550mm | 650mm | 750mm | 450 x 2 = 900mm |
| No. of Blades | 5 | 5 | 5 | 5 | 5 | 6 + 4 = 10 |
| Throat Size | 200 x 200mm | 300 x 300mm | 550 x 300mm | 650 x 300mm | 750 x 300mm | 900 x 400mm |
| Feed Motor | 1HP | 1HP | 2HP | 2HP | 3HP | 5HP |
| Grinder Motor | 2HP | 3HP | 7.5HP | 10HP | 12.5HP | 20HP |
| Line Speed (Mtr./Min.) | 6 ~ 40 | 8 ~ 40 | 10 ~ 100 | 10 ~ 100 | 10 ~ 150 | 10 ~ 150 |
| Grinding Capacity | 25 ~ 40 Kgs/Hr | 50 ~ 75 Kgs/Hr | 100 ~ 125 Kgs/Hr | 150 ~ 200 Kgs/Hr | 200 ~ 300 Kgs/Hr | 300 ~ 400 Kgs/Hr |
| Type of Material | PS/PE/PP SHEETS | PS/PE/PP SHEETS | PS/PE/PP SHEETS | PS/PE/PP SHEETS | PS/PE/PP SHEETS | PS/PE/PP SHEETS |
| Thickness of Material | 0.2 ~ 0.9mm | 0.2 ~ 1.1mm | 0.3 ~ 1.5mm | 0.3 ~ 1.5mm | 0.3 ~ 1.5mm | 0.3 ~ 1.5mm |
| Width of Material | 20 ~ 80mm x 2Trims | 20 ~ 120mm x 2Trims | 500mm width sheet max | 600mm width sheet max | 700mm width sheet max | 800mm width sheet max |
