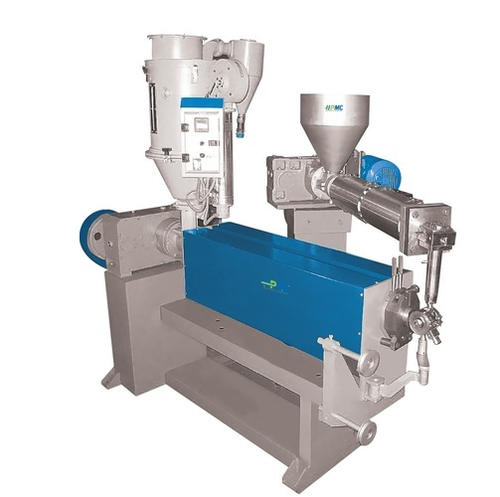

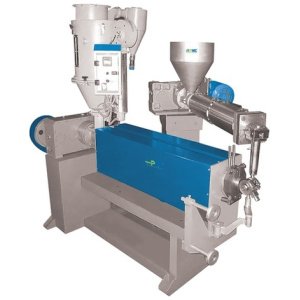

High Speed Two Layer Cable Extruder offered are developed using latest technology support so as to provide for high production outputs. Finding use in stainless steel construction areas, these cable extruders can be offered by us in different model choices so as to match up with the exact process application needs of the customers. Some of the end uses of the two layer cables manufactured using this plant include for electrification, automobile, engineering and stainless steel construction. The standard functioning features of these plants include manually adjusted valves for controlling water flow, capstan support, smooth transmission force and capabilities to produce cables in different diameters from 10 mm to 50 mm.
Applications –
Electrification
Automobile
Engineering
Stainless steel construction.
Cable is repeatedly wrapped around the deflection pulley
Water flow controlled by manually adjusted valves.
Capstan –
Efficient transmission of the tractive forces
Smooth transmission force
Essential for the best possible production
Cable diameter ranges from 10 mm to 50 mm.
Technical Specifications of high speed two layer cable extrusion lines:
| Model | Motor load (HP) | Max RPM | L/D Ratio | Heating power (KW) | Prod. Kg/Hr (PVC) | Prod. Kg/Hr (XLPE) |
| 45/30 | 10/5 | 70/70 | 26/26 | 10/5 | 60 | – |
| 45/45 | 10/10 | 70/70 | 26/26 | 10/10 | 80 | 50 |
| 65/45 | 20/10 | 70/70 | 26/26 | 12/10 | 120 | 85 |
| 100/65 | 40/20 | 60/70 | 26/26 | 22/12 | 280 | 200 |
Extruder Specifications –
| HC 400 | HC 630 | HC 800 | HC 1000 | |
| Wheel Dia | 400 | 630 | 800 | 1000 |
| Max. Traction Force (Kg.) | 200 | 500 | 800 | 1000 |
| Max. Dia of cable (mm) | 10 | 20 | 30 | 40 |
| Max Speed (m/min.) | 400 | 250 | 150 | 80 |
| AC Drive (HP) | 2 | 3 | 5 | 75 |
The broad portfolio of medium voltage (MV) and low voltage (LV) cables, including lt PVC/XLPE power cables, PVC cables, PVC insulated cables, PVC electrical cables, control cables, AB cables & instrumentation cables, which we find usage in :
- Electrification
- Automobile
- Engineering
