Description:

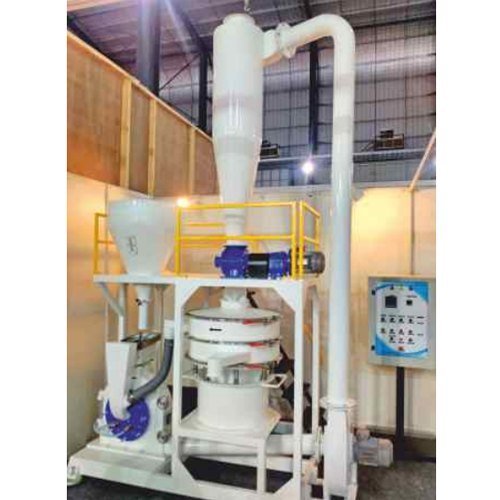

Fine Pulverizing System Suitable for Pulverizing Scrap of Pvc Pipes in to Fine Powder. The Unit is With Complete Support Structure From Heavy Steel Consisting of Following Assemblies.
- Complete Robust It Very Sturdy Structure for Sound And Vibration Free Operation.Electromagnetic Vibrating Feeder for Uniform Et Controlled Feeding of Material.
- Main Grinding Disc of Special Hardened Material & Gas Nitride for Longer Life.
- Effective Water Cooling System for Main Mill Body, Grinding Disc Set Bearing Housing.Temperature Monitoring of Disc Mill Et Thereby Ease of Control on Feed Rate.
- Vibratory Screen for Effective Separation of Course Et Fine Particles of Pulverized Materials.
- Air Lock Valve Assembly With Cyclone Hopper for Effective Separation of Air Ft Pulverized Material.
- High Speed Blower With Motor for Efficient Suction of Grinded Material Et to Convey Up to the Cyclone System.
- Electrical Panel With Dust Proof Construction Equipped With Reputed Make Electrical Switch Gears Et With All Necessary Controls.
- All Components Get Bought Out Parts Are of Reputed & Reliable Make.
- Complete Machine With Superior Grade Paint With Five Stage Process.
| Particular | UNIT | DEPV- 400 | DEPV- 450 |
| Main Motor AC | Kw | 30.00 | 37.50 |
| Blower Motor | Kw | 4. | 4. |
| Airlock valve | Kw | 0.75 | 0.75 |
| Vibrating Screen | Kw | 0.75 | 0.75 |
| Output in LLDPE, LDPE, PVC 20 mesh. | Kgs/hr | 150 to 175 | 200 to 250 |
| Total Load | Kw | 35. | 43. |
| Floor space | mm | ||
| Length | 2400 | 3000 | |
| Width | 1600 | 2500 | |
| Height | 3300 | 4000 |
