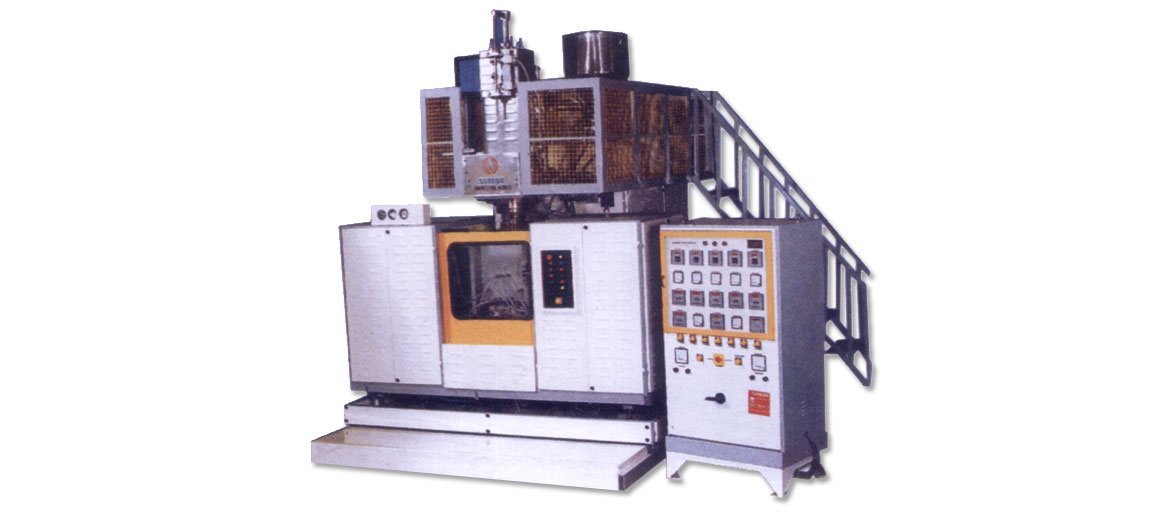

This series is for moulding containers, pallets, jerry cans drums from 5 liters up to 100 liters, etc. It is equipped with a resin ram acccumulator & one – stage perison control. perison injector obtains uniform thickness in seconds.The SEW machines are single and double station blow moulding with or without de – flashing systems are a console and unitized, making it exceptionally easy to customize the machine to meet your exact needs.All electronic processing & safety controls are organised on a single console that features an easy to read display of the open construction, premium quality parts & precision workmanship, all contribute to its low maintenance design & minimum use of spare parts.The flexibility of these machines is remarkable for production versatility , engineered for consistent efficiency, & manufactured for lasting value at low cost.We provide choice of single or double station with or without de-flashing machine in different models with options of viewing strip machines, hot wire – cutter, bottom blowing system, angular blowing attachment, multi point perison control extruders with bigger diameters.
Salient Features:
- Fully Automatic.
- Continuous Perison.
- Simple to Operate.
- More Versatility.
- Great reliability in Production.
- Infinitely Variable Speed with High Output.
Technical Data and Models:
| MODEL | (UNITS) | SEW-40 | SEW-45 | SEW-50 | SEW-65 | SEW-65 |
|---|---|---|---|---|---|---|
| Capacity | Litre. | 1 | 2 | 5 | 10 | 20 |
| Material to be use | – | HD/PVC | HD/PP | HD/PP | HD/PP | HD |
| Screw diameter | MM | 40 | 45 | 50 | 65 | 65 |
| L/D ratio | L/D | 22:1 | 22:1 | 22:1 | 24:1 | 24:1 |
| Extrude Capacity | Per/Kg | 20 | 25 | 30 | 45 | 45 |
| Screw Speed | RPM | 40 | 40 | 40 | 45 | 45 |
| Heating zone | Nos. | 5 | 5 | 5 | 6 | 6 |
| Accumulator capacity | Kg | – | – | – | – | 2.5 |
| Extrude motor | HP | 3 | 3 | 5 | 10 | 15 |
| Hydradulic motor | HP | – | – | 3 | 7.5 | 10 |
| Max. Daylight opening | MM | 250 | 300 | 350 | 400 | 800 |
| Min. Daylight opening | MM | 100 | 100 | 100 | 150 | 200 |
| Power consumption | HP | 18 | 20 | 25 | 35 | 50 |
| Air flow | Ltr./Min | 80-100 | 80-100 | 100-120 | 120-500 | 300-400 |
| Air pressure | kg/cm2 | 3-5 | 3-5 | 5-7 | 5-7 | 6-8 |
| Water Flow | Ltr./Min | 20-30 | 20-30 | 20-30 | 30-40 | 80-100 |
| Machine weight(Approx.) | Tone | 0.8 | 0.9 | 1.5 | 2 | 3 |
| Dimension of machine | Feet | 5x3x5 | 5x3x5 | 5x4x6 | 9x7x7 | 15x8x14 |
