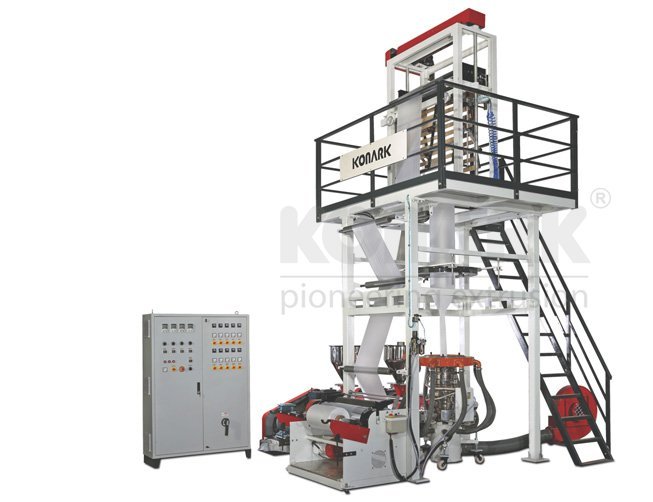

Features:
- Compact dimensions results in minimum space requirement
- Output range starting from 40 Kgs/Hr to upto150 Kgs/hr
- Grooved Feed type Nitrided Barrels
- Nitrided Screw-Barrel made of special alloy steel for longer life
- Helical gear box with inbuilt thrust bearing
- Uniquely designed spiral type of Co-Ex- ABA die suitable for HM-HDPE or LD-LLDPE materials
- Uniquely designed Air Cooling Ring for higher output
- High velocity air ring blower with AC invertor drive
- Bubble Calibrating Basket / Iris Ring
- Universal gusseting arrangement
- Embossing roller attachment
- With or without vertical type oscillating haul-off unit for gauge randomization
- Web aligner system
- Single station / two station surface type rewinder
- Centre & Side slitting arrangement
- High density ceramic type band heaters
- SSR based all heating zones
- Single point synchronization of whole line with AC motors and AC invertor drives.
Applications:
- Film For Carry Bag, Shopping Bag, D Cut Bag, Grocery Bag Etc.
- Film For Garbage Bag / Trash Bag
- Film For Liners
- Film For General Purpose Loose Packing
Technical Specifications:
| Model | KML-A/35-40-G | KML-A/40-47-G | KML-A/47-55-G |
| Material To Be Processed | HM, HDPE | HM, HDPE | LDPE, LLDPE |
| Screw Dia | Extruder A – 35 mm | Extruder A – 40 mm | Extruder A – 47 mm |
| Extruder B – 40 mm | Extruder B – 47 mm | Extruder B – 55 mm | |
| Barrel Feed Type | Groove Feed | Groove Feed | Groove Feed |
| Layflat Film Width Range | 250 to 600 mm | 350 to 900 mm | 800 to 1300 mm |
| Film Thickness Range | 20 to 100 micron | 20 to 100 micron | 20 to 100 micron |
| Maximum Output | 70 Kg/Hr | 90 Kg/Hr | 120 Kg/Hr |
| Die | Co-Ex ABA Die | Co-Ex ABA Die | Co-Ex ABA Die |
| Winder | Single Station Surface Winder | Single Station Surface Winder | Double Station Surface Winder |
| Machine Connected Load | 52 KW (69 HP) | 64 KW (85 HP) | 98 KW (85 HP) |
| Dimensions ( L x W x H ) Apprx | 10 x 10 x 15 Feet | 12 x 12 x 18 Feet | 25 x 12 x 18 Feet |
| Optional Attachment | LDPE, LLDPE Attachment | LDPE, LLDPE Attachment | HM, HDPE Attachment |
| Rotating Haul Off Unit | Rotating Haul Off Unit | Rotating Haul Off Unit | |
| Double Station Winder | Double Station Winder |
