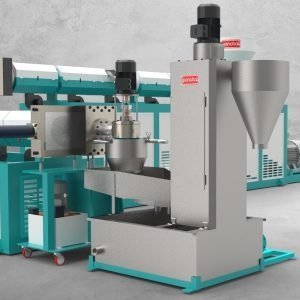

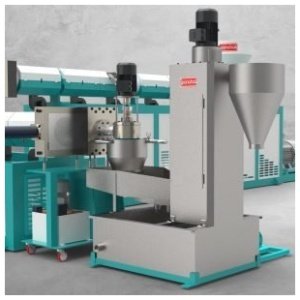

The DFW series of waterring pelletising systems are simple to run. Pelletizing of PE, PP, PS, ABS, and related plastics is one of their main applications.
Advantages:
- Vibration-free design with Direct Drive technology
- Suitable for use with all standard extruders.
- Time is saved by a simple and fast pelletiser knife changeover that does not require any adjustment work.
- Thanks to an advanced pellet cooling system, the cost of cooling water has been reduced.
Technology:
Die Face Water: The pelletizing systems of the DFW series are easy to operate. The pelletizing of PE, PP, PS, ABS and similar plastics is their field of application.
Dryer: The pellets are cooled by the water and transferred directly from the cutting chamber to the centrifuge due to the high flow rate. The granules are then dried after being separated from the water.
Technical Data:
| MODEL | PPM-75DFW | PPM-90DFW | PPM-100DFW | PPM-120DFW | PPM-140DFW |
|---|---|---|---|---|---|
| Screw Diameter (mm) | 75 | 90 | 100 | 120 | 140 |
| L/D Ratio | 26:1 | 26:1 | 26:1 | 26:1 | 26:1 |
| Heating Load (kW) | 18 | 22 | 26 | 30 | 38 |
| Main Motor (HP) | 25 | 30 | 40 | 50 | 60 |
| Screen Changer (HP) | 3 | 3 | 5 | 5 | 5 |
| Die Face Drive (HP) | 2 | 2 | 3 | 3 | 3 |
| Water Pump (HP) | 2 | 2 | 2 | 2 | 2 |
| Spin Dryer (HP) | 3 | 3 | 13 | 5 | 5 |
| Production (Kg/Hr.) | 70-100 | 100-150 | 110-180 | 150-250 | 200-350 |
